Dn350 Ansi Flange Type Stainless Steel Flexible Single Sphere Rubber Expansion Joint

Henan Lianghe Pipeline Equipment Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Dn350 Ansi Flange Type Stainless Steel Flexible Single Sphere Rubber Expansion Joint

  • 1
  • 2
  • 3

Brand Name : Lianghe

Model Number : KXT

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1 Set

Price : $15.5-$25

Payment Terms : T/T, D/A, D/P, Western Union, MoneyGram, L/C

Supply Ability : 6000 set per month

Delivery Time : 5-7day

Packaging Details : Inside: Plastic Film ,Outside: Wooden Case

Product name : Stainless Steel Flexible Single Sphere Rubber Expansion Joint

Size : DN15-DN4000

Pressure : PN6 - PN40

Flange material : SS304,SS316,carbon steel, ductile iron,etc

Test pressure : 1.5 times of working pressure

Explosion pressure : 2 times of working pressure

Manufacturer : Yes, factory

Contact Now

Dn350 Ansi Flange Type Stainless Steel Flexible Single Sphere Rubber Expansion Joint

Product Description:


This single sphere expansion joint is designed to absorb vibration, reduce noise, and compensate for thermal movement in pipelines.

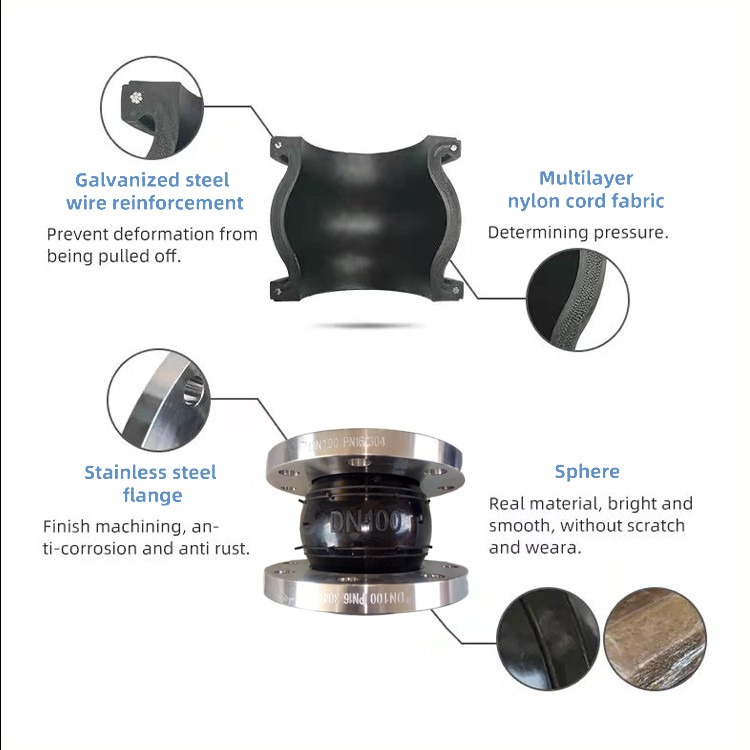

Featuring a DN350 (14-inch) nominal diameter, it incorporates a single sphere EPDM/NBR rubber body for excellent flexibility and corrosion resistance, especially in water, chemical, or industrial applications. The flanges are ANSI 150# standard, made from stainless steel (SS304/316), providing superior strength and long-term durability.

Dn350 Ansi Flange Type Stainless Steel Flexible Single Sphere Rubber Expansion Joint

Key Features:

Size: DN350 (14”)

Connection: ANSI 150# Stainless Steel Flanges

Body: High-quality EPDM/NBR Rubber (customizable)

Flange Material: SS304 / SS316

Design: Single sphere for maximum flexibility

Working Pressure: PN10 / PN16 / ANSI Class 150

Temperature Range: -20°C to +120°C (depending on rubber material)

Applications: HVAC systems, water treatment, chemical processing, power plants, marine, and oil & gas industries

Main connection dimensions
Nominal diameter

Length

(mm)

Axial displacement Horizontal movement
(mm)
Deflection angle Special length
(mm)
mm inch Compression
(mm)
Extension
(mm)
32 1 1/4 95 9 6 9 15° 130/150/200
40 1 1/2 95 10 6 9 15° 130/150/200
50 2 105 10 7 10 15° 130/150/200
65 2 1/2 115 13 7 11 15° 130/150/200
80 3 135 15 8 12 15° 130/150/200
100 4 150 19 10 13 15° 130/200
125 5 165 19 12 13 15° 130/150/200
150 6 180 20 12 14 15° 130/150/200
200 8 210 25 16 22 15° 130/150/200
250 10 230 25 16 22 15° 130/150/200
300 12 245 25 16 22 15° 130/150/200
350 14 255 25 16 22 15° 130/150/200
400 16 255 25 16 22 15° 130/150/200
450 18 255 25 16 22 15° 200
500 20 255 25 16 22 15° 200
600 24 260 25 16 22 15° 300
700 28 260 25 16 22 15° 300
800 32 260 25 16 22 15° 300
900 36 260 25 16 22 15° 300
1000 40 260 26 18 24 15° 300
1200 48 260 26 18 24 15° 300

The range of size from DN15 to DN4000 are available.

Benefits:

1.Compensates for axial, lateral, and angular movements

2.Reduces noise and vibration in piping systems

3.Resistant to corrosion and aging

4.Easy installation with standard ANSI flange compatibility

Dn350 Ansi Flange Type Stainless Steel Flexible Single Sphere Rubber Expansion Joint

Important Considerations:

Control Rods: For applications where excessive movement or pressure thrust could damage the expansion joint or adjacent equipment, control rods (tie rods) are often recommended or required. These rods limit the maximum extension of the joint.

Pressure and Temperature Ratings: Ensure the expansion joint's pressure and temperature ratings are suitable for the specific application. Different rubber materials have different operating limits.

Movement Capabilities: Understand the maximum allowable axial, lateral, and angular movements the joint can accommodate, and ensure these align with the system's needs. Note that typical single-sphere joints are designed for non-concurrent movements (i.e., not all movements simultaneously at their maximum).

Installation: Proper installation is crucial for the longevity and performance of the expansion joint. Floating flanges facilitate easier alignment during installation.
