The meanning of double ball rubber joints
Rubber joints, also known as flexible rubber joints, rubber soft joints, soft joints, flexible rubber joints, rubber expansion joints, shock absorbers, etc., are pipeline connectors with high elasticity, high airtightness, medium resistance, and weather resistance.
Performance characteristics of double ball rubber joints
Rubber joints utilize the advantages of high elasticity, high gas resistance, medium resistance, weather resistance, and radiation resistance of rubber, which can reduce pipeline vibration and noise, and compensate for thermal expansion and contraction caused by temperature changes.
Product advantages
1. The sphere is longer and has better vibration and noise reduction effects
2. Good telescopic displacement performance and longer service life than single ball rubber joints
3. Small size, light weight, good flexibility, and convenient installation and maintenance
4. Absorbable displacement after installation
5. Reduce noise
Our service:
1. Strict quality control system to ISO9001:2015. Regular pressure test, third-party test if requested.
2. Fast delivery - varieties stocks for urgent order.
3. Competitive factory price.
4. Full technical support from drawing design to after-sales;
5. Product customization/Packaging customization/Pattern and Logo customization.
6.Small orders / OEM orders acceptable.
| Technical Conditions of Rubber Expansion Joint |
| Item | KST-PN10 | KST-PN16 | KST-PN25 |
| Working pressure | 1.0Mpa | 1.6Mpa | 2.5Mpa |
| Burst pressure | 2.0Mpa | 3.0Mpa | 4.5Mpa |
| Vacuum | 53.3Kpa(400) | 86.7Kpa(650) | 100Kpa(750) |
Connecting Data
| Nominal diameter | Length (mm) | Center distance | Number of holes-diameter | Axial displacement(mm) | Lateral displacement | Angular displacement |
| mm | Inch | Elongation | Compression |
| 40 | 1 1/2 | 165 | 110 | 4-18 | 30 | 50 | 45 | 35° |
| 50 | 2 | 165 | 125 | 4-18 | 30 | 50 | 45 | 35° |
| 65 | 2 1/2 | 175 | 145 | 4-18 | 30 | 50 | 45 | 35° |
| 80 | 3 | 175 | 160 | 8-18 | 35 | 50 | 45 | 35° |
| 100 | 4 | 225 | 180 | 8-18 | 35 | 50 | 40 | 35° |
| 125 | 5 | 230 | 210 | 8-18 | 35 | 50 | 40 | 35° |
| 150 | 6 | 325 | 240 | 8-22 | 35 | 50 | 40 | 35° |
| 200 | 8 | 325 | 295 | 8-22 | 35 | 50 | 40 | 35° |
| 250 | 10 | 325 | 350 | 12-22 | 35 | 60 | 35 | 30° |
| 300 | 12 | 325 | 400 | 12-22 | 35 | 60 | 35 | 30° |
| 350 | 14 | 350 | 460 | 16-22 | 35 | 60 | 35 | 30° |
| 400 | 16 | 350 | 515 | 16-26 | 35 | 60 | 35 | 30° |
| 450 | 18 | 350 | 565 | 20-26 | 35 | 60 | 35 | 30° |
| 500 | 20 | 350 | 620 | 20-26 | 35 | 60 | 35 | 30° |
| 600 | 24 | 400 | 725 | 20-30 | 35 | 60 | 35 | 30° |
| 700 | 28 | 400 | 840 | 24-30 | 35 | 60 | 35 | 30° |
| 800 | 32 | 400 | 950 | 24-30 | 35 | 60 | 35 | 30° |
Production Process

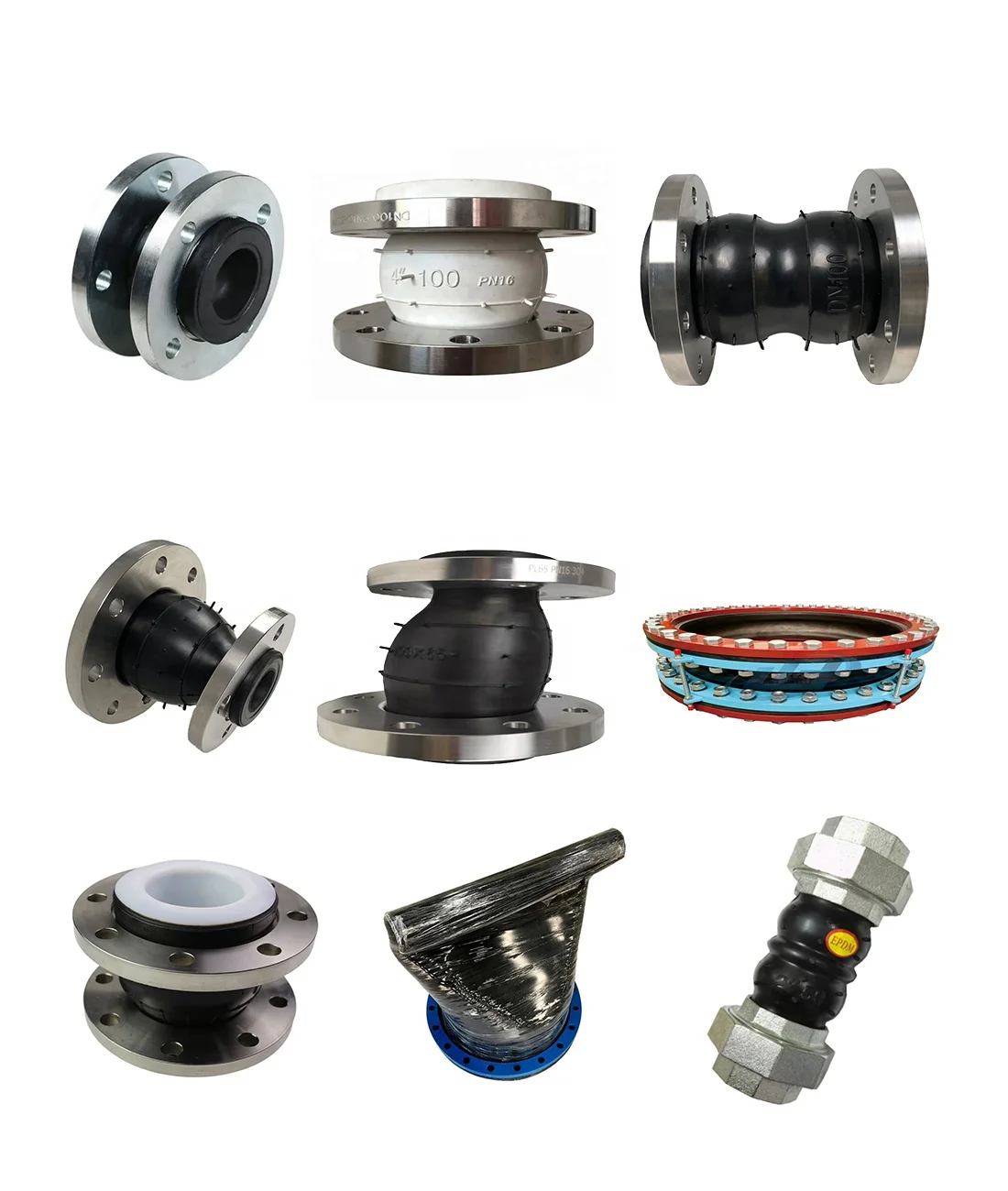

Other rubber products
FAQ
Q: What is the MOQ of the double arch rubber absorb shock expansion joint?
A: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us .
Q: Can I get a sample?
A: Of course you can .
For samll order ,express wll be best;And for bulk order,sea ship way is best but take much time;For urgent orders,we suggest via air to airport plus ,then ship partner send to your door.
Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: And what's your packing?
A: Carton cases inside, export wooden cases outside.
