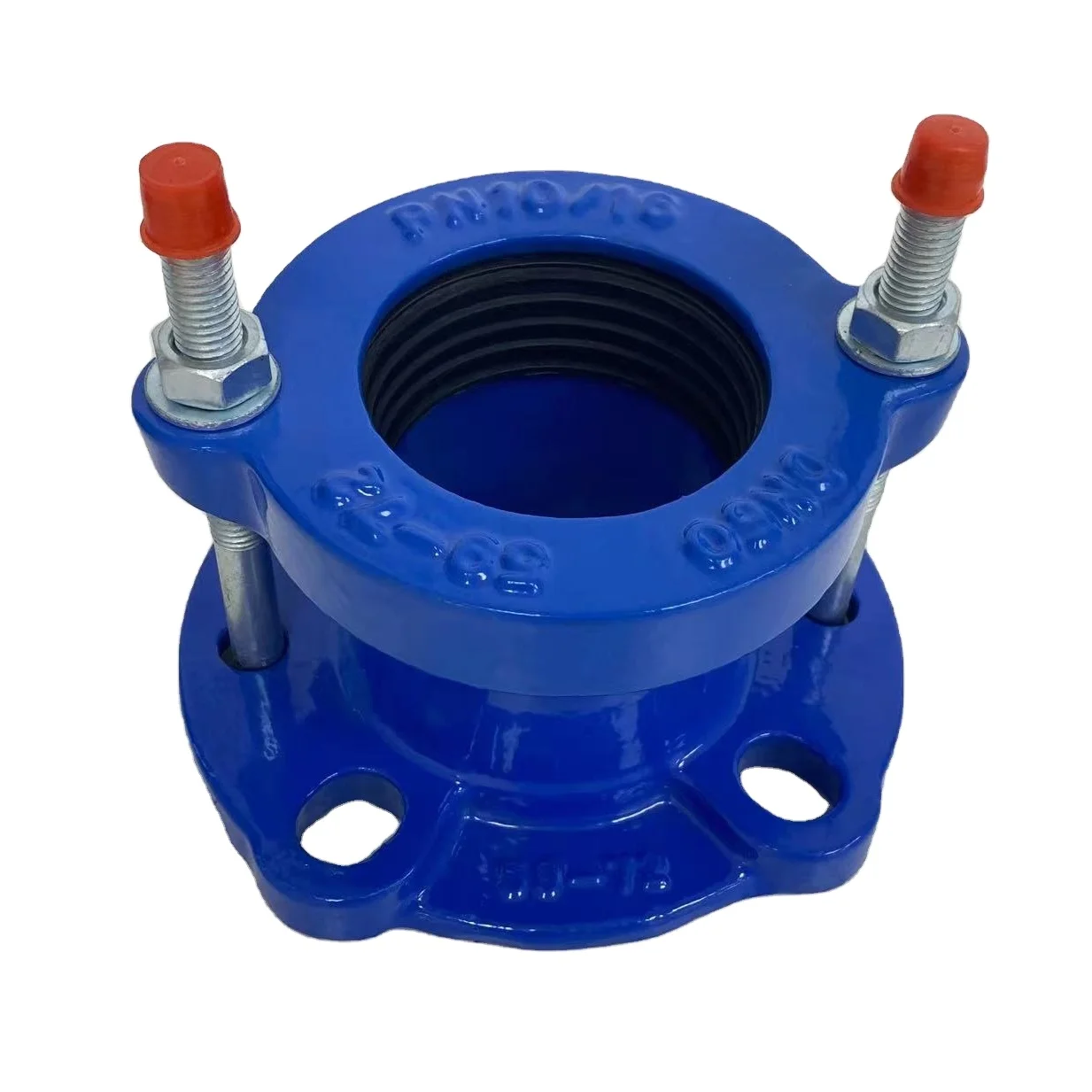

Ductile iron universal coupling fitting hdpe pipe flange adaptor price
Flanged Adaptors are designed for pipelines , As a wide tolerance system.It will fit most standard pipe materials and therefore dramatically reducesthe number of dedicated Flanged Adaptors which need to be stocked for maintenance purposes.When connecting PE pipes , It is important that pipe inserts are fitted to the PE pipes .

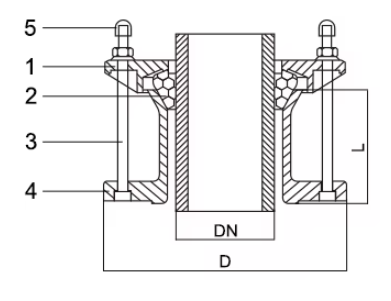

Product parameters
| NO | Name | Material | Quantity |
| 1 | Gland | GJS500-7 | 1 |
| 2 | Rubber sealing ring | EPDM | 1 |
| 3 | Bolt | Q235B,SS304,SS316L, etc | N |
| 4 | Body | GJS500-7 | 1 |
| 5 | Plastic cap | Plastic | N |
| Main connecting dimension of flange adaptor |
| Nominal diameter | OD range (mm) | L(mm) | D(mm) | Bolt |
| Size | Quantity |
| DN50 | 59-72 | 75 | 165 | M12*130 | 2 |
| DN65 | 72-85 | 75 | 185 | M12*130 | 2 |
| DN80 | 88-103 | 76 | 185 | M12*130 | 4 |
| DN100 | 93-117 | 78 | 218 | M12*130 | 4 |
| DN100 | 105-122 | 78 | 218 | M12*130 | 4 |
| DN100 | 108-128 | 78 | 218 | M12*130 | 4 |
| DN125 | 125-140 | 78 | 250 | M12*130 | 4 |
| DN125 | 132-146 | 78 | 250 | M12*130 | 4 |
| DN125 | 138-153 | 78 | 250 | M12*130 | 4 |
| DN150 | 155-175 | 80 | 272 | M12*130 | 4 |
| DN150 | 158-182 | 80 | 272 | M12*130 | 4 |
| DN175 | 192-210 | 85 | 312 | M12*130 | 4 |
| DN200 | 218-235 | 85 | 335 | M12*130 | 4 |
| DN225 | 235-252 | 85 | 355 | M12*130 | 4 |
| DN225 | 250-267 | 85 | 405 | M12*130 | 4 |
| DN250 | 265-280 | 90 | 405 | M12*130 | 6 |
| DN250 | 272-289 | 90 | 405 | M12*130 | 6 |
| DN300 | 315-332 | 90 | 460 | M12*130 | 6 |
| DN300 | 322-339 | 90 | 460 | M12*130 | 6 |
| DN350 | 351-368 | 110 | 510 | M16*180 | 8 |
| DN350 | 374-391 | 110 | 510 | M16*180 | 8 |
| DN350 | 386-415 | 110 | 510 | M16*180 | 8 |
The above data is for reference only, and we can also customize it according to your needs.
FAQ
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement.
Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C at sight.
Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: Do you accept small quantity order?
A: Of course we do.
Q: Can we choose different material?
A: Yes, the material can be chose according to your requirement.
Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
Q: And what's your packing?
A: carton cases inside, export wooden cases outside.
