Brand Name : Lianghe
Model Number : KXT
Certification : ISO 9001:2015
Place of Origin : China
MOQ : 1 Set
Price : $15.8-$155.9 per set
Payment Terms : T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability : 8500 set per month
Delivery Time : 5-10 work days
Packaging Details : Inside: Plastic Film ,Outside: Wooden Case
Product name : EPDM Rubber Bellow Compensator with Single Sphere Design
Size : DN25 - DN3000mm
Pressure : PN6 - PN40
Standard of flange : ANSI, DIN, JIS, EN, etc
Body material : NR, NBR, EPDM, etc
Flange material : Carbon steel, stainless steel, ductile iron, etc
Overall Length : Customized

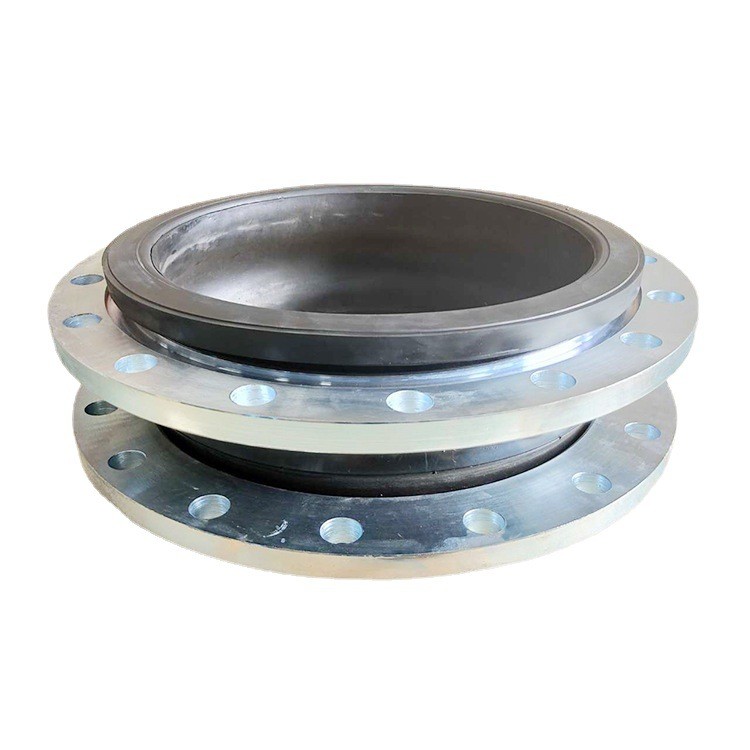

EPDM Rubber Bellow Compensator with Single Sphere Design Rubber Expansion Joint
An EPDM rubber bellow compensator with a single sphere design rubber expansion joint is a critical component in piping systems, designed to accommodate various movements and protect the integrity of the system.
Single Sphere Design: This refers to the bellows' shape, which features a single, molded spherical rubber body.
Inherently Stronger: The spherical shape is considered inherently stronger than spool arch types, as internal pressure is distributed evenly in all directions, reducing turbulence and sediment buildup.
Long Radius Arch: The long-radius contour prevents sediment accumulation and creates less turbulence and pressure drop compared to spool-arch joints.
Reinforcement: The rubber bellow is typically reinforced with synthetic polyester or nylon tire cord, and sometimes steel wire, embedded within the rubber layers. This reinforcement increases pressure capacity and overall durability, distributing stress evenly.
Floating Flanges: Many single-sphere designs come with floating metallic flanges (e.g., carbon steel, stainless steel) that allow for easy installation and alignment with mating pipe flanges.
The rubber sealing surface often eliminates the need for additional gaskets.
NO | Name | Material |
1 | Outer rubber | NR,EPDM,NBR,FKM,etc |
2 | Inner rubber | NR,EPDM,NBR,FKM,etc |
3 | Frame | Nylon cord fabric |
4 | Flange | Carbon steel galvanized,Stainless steel |
Operation condition | |
Working temperature | -30℃~150℃ |
Working pressure | 6~25bars(PN6-PN25) |
Test pressure | 1.5 times working pressure |
Burst pressure | 2 times working pressure |
Applicable media | Domestic water, sewage, seawater, acid, alkali, mud, etc. |
Movement Compensation:
Axial Movement: Compression and elongation along the pipe's axis.
Lateral Movement: Side-to-side deflection.
Angular Movement: Flexing at an angle.
Vibration and Noise Reduction: The rubber material and design effectively dampen vibrations and absorb shocks generated by pumps and motors, reducing noise transmission and protecting pipes from wear and tear.
Misalignment Compensation: Can compensate for minor pipe misalignments during installation or due to settling.
Applications:
EPDM rubber bellow compensators with a single sphere design are widely used in various industries and systems, including:
Water and Wastewater Treatment: Used in fluid transport pipes to manage system vibrations and movements. EPDM's resistance to water and certain chemicals makes it well-suited for these applications.

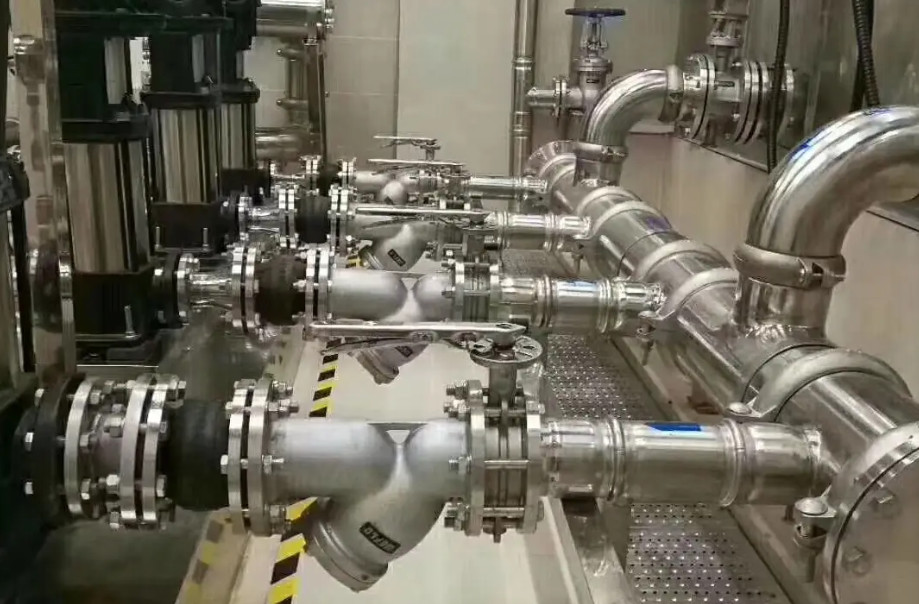

Pumping Systems: Installed near pumps and compressors to absorb vibrations, protect the integrity of the piping, and reduce noise.
Power Generation: Especially in power plants utilizing steam or renewable energy, to manage thermal expansion in high-temperature steam and cooling systems.
Industrial Equipment: Protects machinery from contaminants and mechanical wear, particularly in environments exposed to chemicals, dust, or vibration. Examples include pump and valve protection, and safeguarding equipment from dust buildup in manufacturing facilities.
Plumbing Networks: Provide watertight seals for water and drainage systems, ensuring long-term reliability.
![]() |
EPDM Rubber Bellow Compensator With Single Sphere Design Rubber Expansion Joint Images |
